Canon i-SENSYS LBP243DW 5952C013 Mono Laser Printer

Canon i-SENSYS LBP243DW-5952C013AA Wi-Fi Mono Laser Printer

Detailed Technical Specifications

General Features

Machine Type: Laser Printer
Available Functions: Print

Print Specifications

Print Speed

• Single-sided: Up to 36 pages per minute (A4)

• Up to 58.8 pages per minute (A5 – Landscape)

• Duplex: Up to 30.2 images per minute (A4)

Printing Method: Monochrome laser printing
Print Resolution: Up to 1,200 × 1,200 dpi
Warm-up Time: Approx. 14 seconds or less (from power on)
First Print Out Time: Approx. 5.0 seconds or less

Printer Languages: UFRII, PCL 5e¹, PCL6
Fonts: 45 PCL fonts

Print Margins: 5 mm (top, bottom, left, right)

Toner Save Mode
Encrypted Secure Print
Secure Print
Microsoft Universal Print support

Mobile Printing

iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service Plugin, Canon PRINT Business app

Advanced Printing Features

iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service Plugin, Canon PRINT Business app

Media Handling

Paper Input

• Standard: 250-sheet cassette, 100-sheet multi-purpose tray

• Optional: 550-sheet cassette

• Maximum Input Capacity: Up to 900 sheets

Paper Output: 150 sheets

Media Types

Plain paper, Recycled paper, Heavy paper, Thin paper, Coated paper, Labels, Postcards, Envelopes

Media Sizes

Cassette (Standard & Optional)

A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K

Custom sizes:

• Min: 105 × 148 mm

• Max: 216.0 × 355.6 mm

Multi-Purpose Tray

A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Index card, Envelopes (COM10, Monarch, C5, DL)

Custom sizes:

• Min: 76.2 × 127 mm

• Max: 216.0 × 355.6 mm

Media Weights

• Cassette (standard & optional): 60 – 120 g/m²

• Multi-purpose tray: 60 – 199 g/m²

Duplex Printing

A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap

Custom sizes:

• Min: 210 × 279.4 mm

• Max: 216.0 × 355.6 mm

• Weight: 60 – 120 g/m²

Interface & Software

Interface Types:
USB 2.0 High-Speed, 10BASE-T / 100BASE-TX / 1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System Compatibility

Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012 R2 / Server® 2012
macOS X version 10.13 or later
Linux²

Network Protocols

Printing: TCP/IP (LPD / Port9100 / IPP / IPPS / WSD)
Management: SNMPv1, SNMPv3 (IPv4, IPv6)
Security: TLS 1.3, IPSec, IP/MAC address filtering, IEEE 802.1X, SNMPv3, SSL (HTTPS, IPPS)

Wireless Security

• Infrastructure Mode: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)

• Access Point Mode: WPA2-PSK (AES)

Software & Printer Management

Remote User Interface (RUI)
Department ID Management
Toner Status Tool

iW Enterprise Management Console: Server-based software for centralized management of a device fleet

e-Maintenance: Built-in RDS providing remote e-Maintenance services such as meter reading, automatic consumables management, and remote diagnostics

General Specifications

Recommended Monthly Print Volume: 750 – 4,000 pages
Maximum Duty Cycle: 80,000 pages

Processor Speed: 1,200 MHz
Memory: 1 GB
Storage: 4 GB eMMC

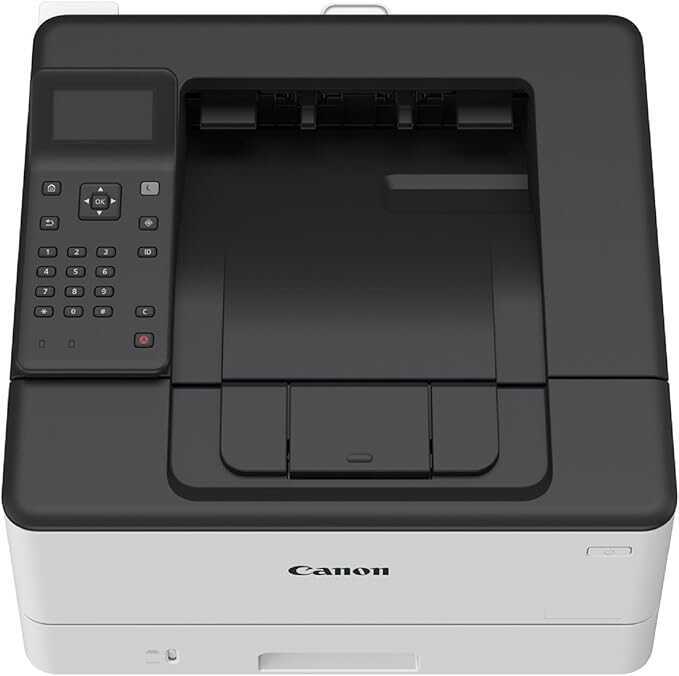

Control Panel:
5-line LCD, 3 LEDs (Job, Error, Energy Saver), Buttons, 10-key numeric keypad

Dimensions & Weight

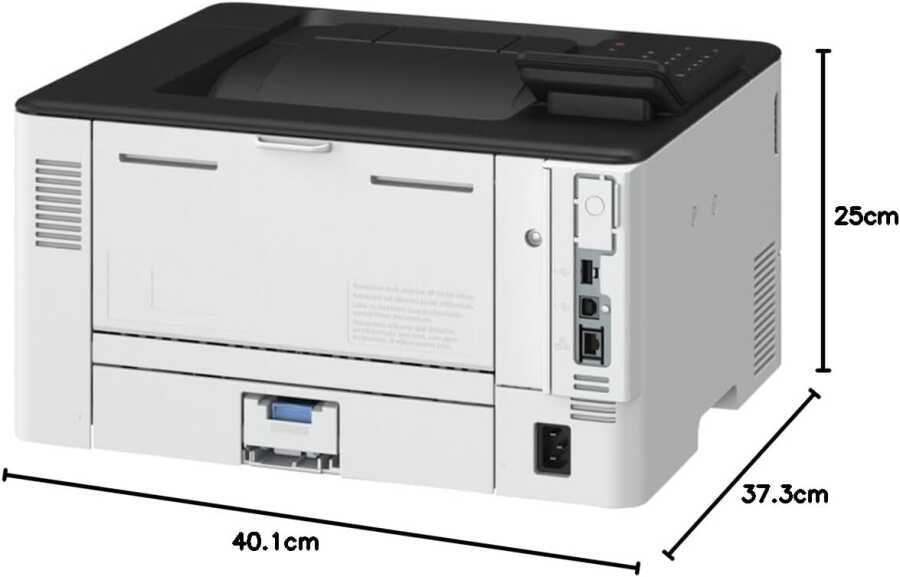

With Trays (W × D × H): 399 × 373 × 249 mm
Weight: Approx. 9.5 kg

Operating Environment

Temperature: 10 – 30 °C (50 – 86 °F)
Humidity: 20 – 80% RH (non-condensing)

Power

Power Supply: 220–240 V (±10%), 50/60 Hz (±2 Hz)

Power Consumption

• Maximum: Approx. 1,250 W

• Active printing: Approx. 480 W

• Standby: Approx. 6 W

• Sleep mode: Approx. 0.9 W

Typical Electricity Consumption (TEC): 0.29 kWh/week (230 V)³

Noise Levels

Sound Pressure

• Active: Single-sided ≤ 54 dB

• Duplex: ≤ 53 dB

• Standby: Inaudible

Sound Power

• Active: 68 dB

• Standby: Inaudible
